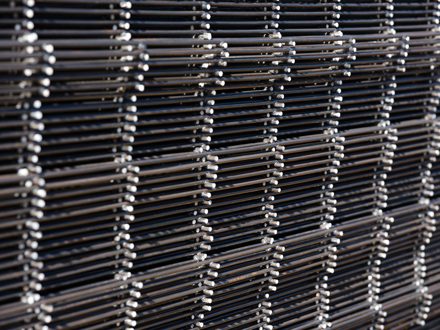

Hard Drawn (Non Ductile) Mesh

Grade 500L:

• Tensile Ratio (Rm/Re) > or = 1.03;
• Uniform Elongation (Agt) > or = 1.5%;
• For specific sheet type lappage refer to mesh specification sheet

Test certificates available on request:

Internally tested from manufacturer to verify compliance to ASNZS 4671:2019.

Test certificates issued by manufacturer IANZ accredited internal testing laboratory.

New Zealand Standards

New Zealand Standards set the requirements for reinforcing steel, welded mesh and their use in concrete construction.

AS/NZS 4671:2019 – Steel for the Reinforcement of Concrete

Specifies material and performance requirements for reinforcing steel bars, wire and welded mesh used in concrete structures.

NZS 3101.1:2006 – Concrete Structures Standard

Sets requirements for reinforced concrete design, including reinforcement development lengths, anchorage and lap splices.

Further information is available from Standards New Zealand.

Our manufacturer of mesh is able to customise sheet sizes and lapping requirements according to particular client specifications.
